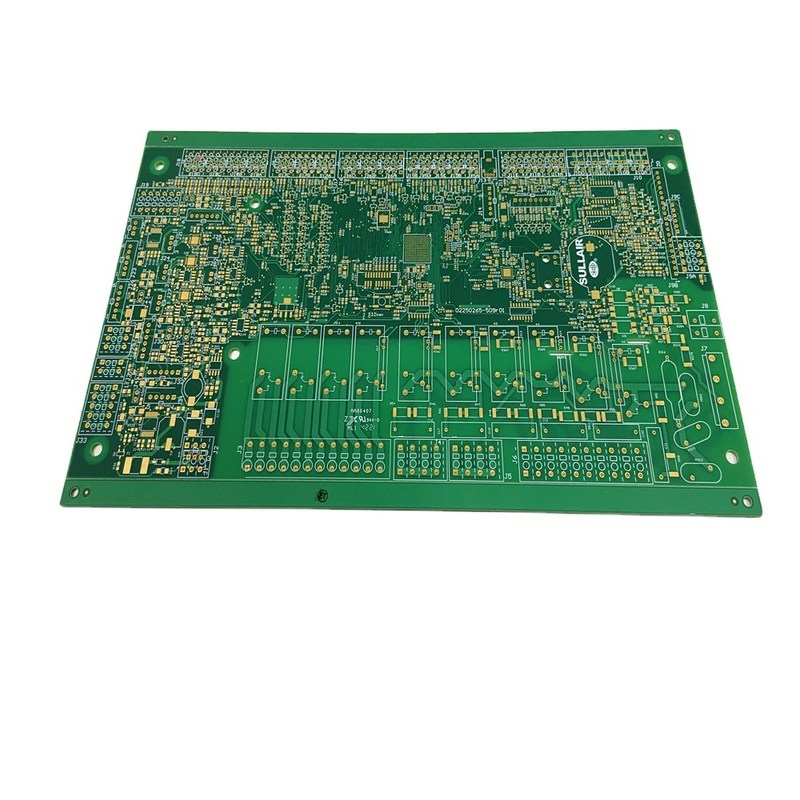

16 layers pcb plug hole pcb board Engineering machine motherboard pcb design manufacturing

Brand Name:	hengsheng
Model Number:	ХС40152
MOQ:	1 шт.
Price:	USD 0.1-5/pcs
Delivery Time:	7-10 дней
Payment Terms:	Т/Т, Вестерн Юнион, ПайПал

Detail Information

Описание продукта

Detail Information

Место происхождения:

Китай

Сертификация:

UL,TS16949,ROHS, ISO9001

Материал:

ФР-4

Толщина платы:

2,0 мм

Базовая медь:

50мм ((1,5 унций)

Мин. Промежуток между строками:

0,15 мм

Мин Ширина линии:

0,15 мм

Мин. Размер отверстия:

0,30 мм

Поверхность:

Загадочный

Тип:

Промышленный контроль

Упаковывая детали:

CATON

Поставка способности:

100000 шт в месяц

Описание продукта

Process Capability And Checking Parameters(Hard Board) NO ITEM Technical Capabilities 1 Layers 1-38L 2 Max.Board Size 1200*610mm 48"*24" 3 Finished Board Thickness 0.2mm--10.0mm 0.008"--0.4" 4 Finished Copper Thickness 17um-420um 0.5OZ--12OZ 5 Min.Trace Width/Space 0.075mm/0.065mm 0.003"/0.0026" 6 Min.Hole Size 0.15mm 0.006" 7 Hole Dim. Tolerance(PTH) ±0.05mm ±0.002" 8 Hole Dim.Tolerance(NPTH) ±0.05mm ±0.002" 9 Drill Location Tolerance ±0.05mm ±0.002&
