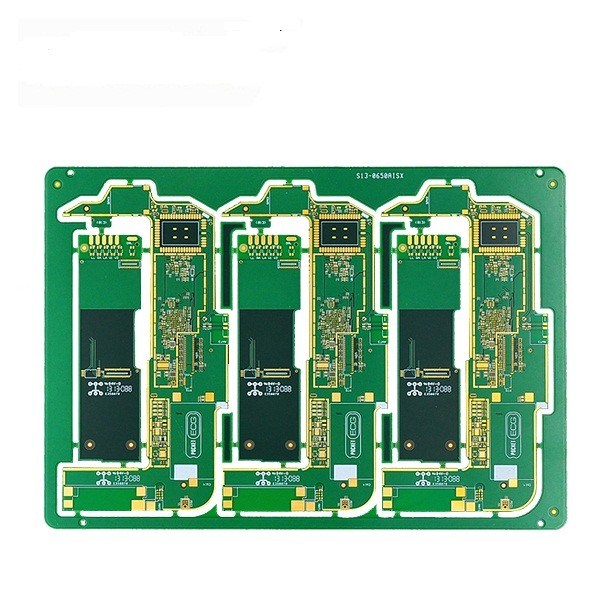

Impedance Control Multi-Layered Printed Circuit Board Ideal for Applications

Impedance Control Multi-Layered Printed Circuit Board Ideal for Applications

Impedance Control Multi-Layered Printed Circuit Board Ideal for Applications

Brand Name:	Hengxunda
Model Number:	плата основной платы 01
MOQ:	1 шт.
Price:	USD 0.1-5/pcs
Delivery Time:	7-10 дней
Payment Terms:	Т/Т, ПайПал, Л/К

Detail Information

Описание продукта

Detail Information

Место происхождения:

Китай

Сертификация:

UL, SGS, ISO9001,ROHS

Материал:

ФР4

Количество слоев:

2-4

Контроль импеданса:

Да

Минимальные ширина/космос трассировки:

6/6mil

Толщина платы:

1,6 мм

Толщина меди:

1/2OZ

Минимальная запруда маски припоя:

4 мили

Минимальный размер отверстия:

0,2 мм

Упаковывая детали:

25 кг/коробка, вакуумная упаковка

Поставка способности:

100000 шт в месяц

Описание продукта

Product Description: Multilayer PCBs, also known as multi-faceted, multi-sided, and multi-level printed circuit boards, are a complex form of printed circuit boards. They are highly functional components that are widely used in the electronics industry due to their ability to connect multiple electrical components in a small space. Multilayer PCBs have board thicknesses of 1.6mm and feature CNC V-cut technology, which ensures precise cutting and accuracy. The HASL (Hot Air
