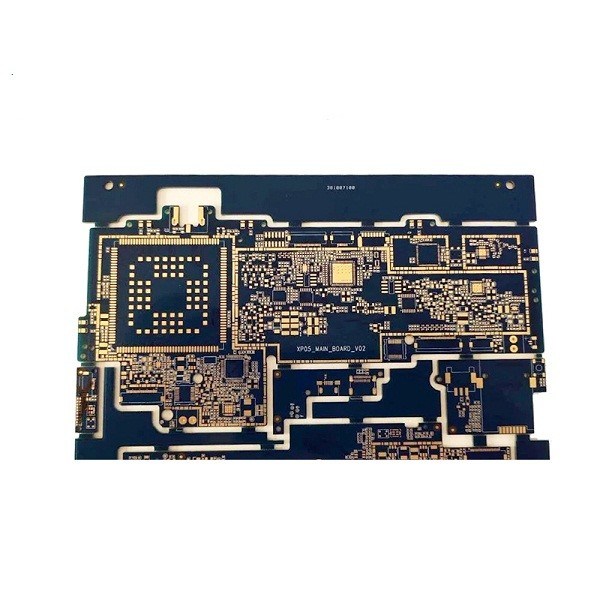

TG150-170 Flexible Multilayer PCB with Impedance Control and White Silk Screen

TG150-170 Flexible Multilayer PCB with Impedance Control and White Silk Screen

TG150-170 Flexible Multilayer PCB with Impedance Control and White Silk Screen

Brand Name:	Hengxunda
Model Number:	ДШ50030А1
MOQ:	1 шт.
Price:	USD 0.1-5/pcs
Delivery Time:	7-10 дней
Payment Terms:	Т/Т, Вестерн Юнион

Detail Information

Описание продукта

Detail Information

Место происхождения:

Китай

Сертификация:

UL, ROHS,SGS,ISO9001

Способ доставки:

ВОЗДУХ/МОРЕ/Экспресс

Количество слоев:

2-20

Поверхностная обработка:

HASL/ENIG/OSP/погружной серебряный/золотой палец

Мин. Промежуток между строками:

3 мил

Толщина меди:

1/2oz-6oz

Материал:

FR-4, TG150-170/Алюминий/Гибкий

Контроль импеданса:

Да/Нет

Цвет шелкового экрана:

Белый/Черный/Желтый

Упаковывая детали:

25 кг/коробка, вакуумная упаковка

Поставка способности:

100000 в месяц

Описание продукта

Product Description: Multilayer PCB is a type of printed wiring circuit board with multi-layer structure. It is usually made of FR-4 material with a Thermal Grade (TG) of 150-170, and is also available in aluminum and flexible material. The board thickness varies from 0.2mm to 3.2mm, and the minimum hole size is 0.2mm. The minimum line space is 3mil. The multilayer PCB can be shipped via air, sea or express. This type of printed wiring circuit board has been widely used in

Tags:

multilayer pcb

pcb multilayer

print circuit board
